European-style double-girder bridge crane

Specializing in solution design, product manufacturing, and sales for overseas material handling systems.

  • Commodity name: European-style double-girder bridge crane
  • Product Description
  • Overall In general

    European-style optimized design, lightweight, low wheel load, and compact dimensions.

    Optimazed designing, DIN/FEM standard, smaller wheel load, space saving

    The lifting capacity reaches 80. t

    Max. Safe working load 80t

    Multiple modes cater to the diverse needs of all users.

    Flexible solution for all lifting needs

    Excellent drive performance, variable-frequency speed control, and smooth operation.

    Excellent driving properties, stepless control, smoothly moving



    Mechanical Mechanical feature

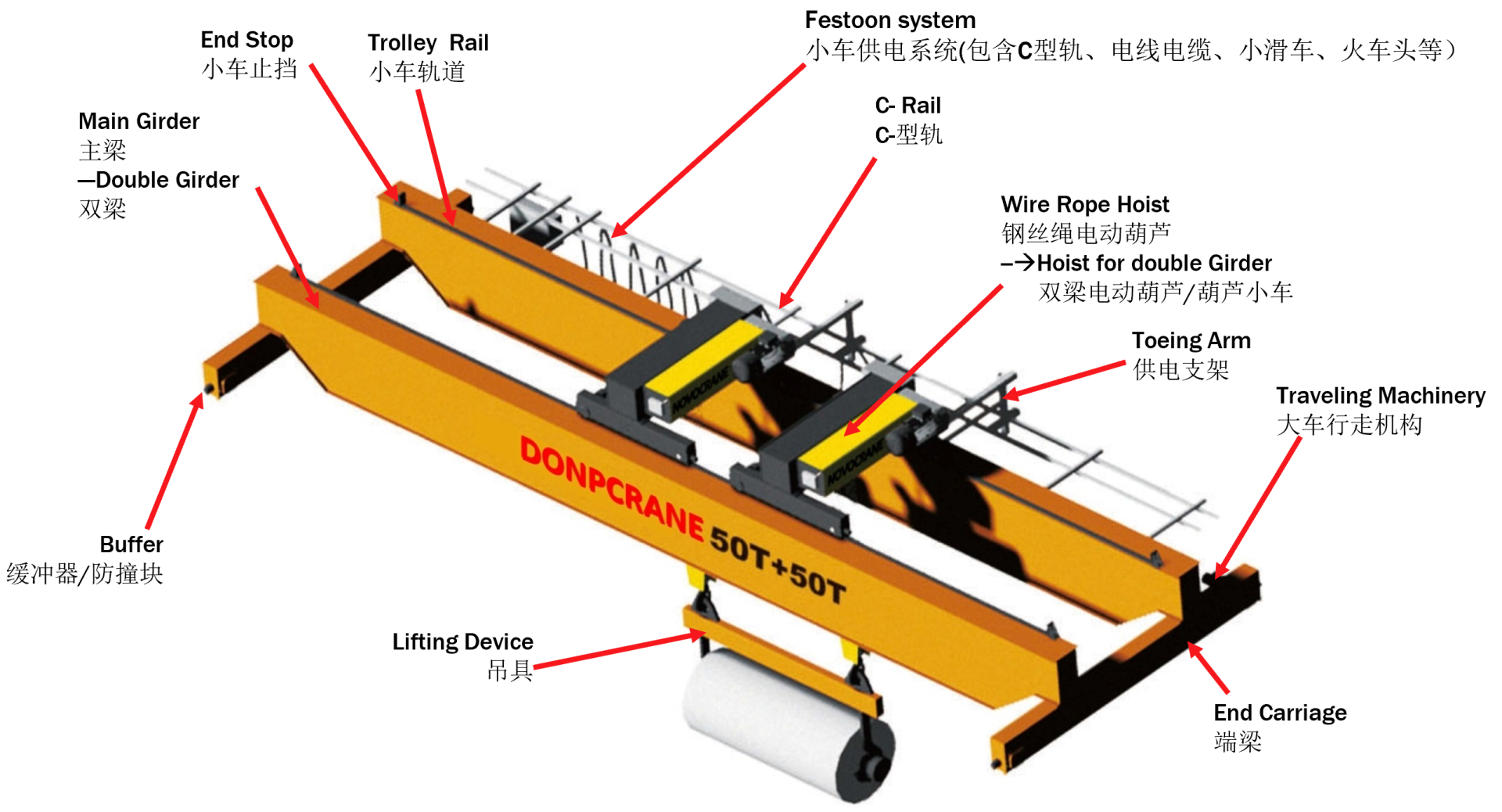

    Double main girders, welded box‑type, with camber conforming to national standards.

    Double-welded box girder, DIN/FEM standard deflection

    The steel plate material is Fe37 or Fe52 (Comparable domestic steel products Q235B or Q345B )

    Material Fe37 or Fe52

    The web is made of 40m CNC cutting and full‑sheet blanking ensure smooth shaping and high precision of the arch curvature.

    Whole length CNC cutting for complete web plate, high deflection accuracy

    The trolley track is made of 16Mn high-strength hot-rolled flat steel.

    Trolley rail is high strength flat steel bar (hot rolled ,16Mn)

    The primary welds are welded using submerged-arc automatic welding and subjected to nondestructive testing.

    High quality autometic welding and NDT inspection

    Post-weld shot blasting of the entire beam, achieving Sa2.5 Grade, eliminate welding stress

    Shot-blasting Sa2.5 for complete girder after welding, stress release

    Epoxy zinc-rich paint, two coats of primer and two coats of finish. 140μ Thick, long-lasting, aesthetically pleasing, and with a beautiful sheen.

    Epoxy zinc rich high quality paiting, 2x2 with 140μm

    The main beam and end beams are made of 10.9 High-strength bolted connections ensure the structural integrity and precision of the entire machine.

    10.9 class High tension bolts mouting between girder and legs, life time safety connection

    The trolley and hoist utilize a three-in-one drive mechanism, featuring variable-frequency stepless speed control, hardened gear surfaces, and disc brakes.

    Compacted gearmotor driving, stepless control, hardern gear, safety disck brake

    Large vehicle drive IP55, F Class insulation, with a continuous duty rating of 40% ED

    High protection class IP55, F class, 40% ED

    End beams are equipped with single‑flange or double‑flange wheels, wear‑resistant bearings, trolley buffer blocks, and anti‑derailment end plates.

    Double flanged or flat wheels, anti-friction bearings, cellular buffers, derailment protectors

    The maintenance walkway is located on one side of the main girder and consists of checkered plate, handrails (1050 mm high), vertical posts, and toe boards.

    Full-length service platform along the crane bridge is supplied,where it si equippe with protective hand railing and toe strips.



    Electrical Electrification and outfitting

    Safety conductor rail power supply

    Conductor power supply

    Configure phase-loss protection function

    Phase control guard opens the main contactor in case of phase failure

    The hoisting, trolley, and gantry mechanisms are independently controlled and can operate either individually or simultaneously.

    All hoist and crane movements are independent and can be run simultaneously.

    Use vibration‑proof contactors specially designed for cranes.

    Contactors meet crane applications, rated for severe vibration.

    The electrical control cabinet is corrosion-resistant, with a protection rating of IP55

    The control panels are finished to withstand corrosion, IP55

    All connections use heavy-duty aviation connectors. Sealed properly, with secure connections.

    Heavy duty plug head

    The control cabinet features a well-organized layout, facilitating maintenance.

    The components are positioned in a maintenance friendly way, and the whole layout provides good protection against accidental contact.

    The plug connection is protected by an insulating plastic sleeve.

    The multi-wire type fixed cables with plastic insulation are intended for crane usage.

    All cables are labeled with wire numbers for easy identification.

    Cables are coded either with numbers, colours or tags for easy identification.

    The trolley‑mounted power supply system utilizes equipment specially designed for cranes. PVC Flat cable, with a voltage rating of 450/750V

    The flate cables used for festoons are PVC insulated flexible flat cables rated for 450/750V, specially designed for cranes, hoists.

    The trolley‑mounted power supply system consists of flat cables, galvanized sliding rails, and cable trolleys, ensuring smooth and stable movement.

    Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanised C-track, which is connected to the main girder with bolted or welded support brackets.



    Lifting mechanism Lifting units

    The most advanced lifting mechanism, with excellent maintenance-free performance. (See European-type hoisting mechanism – wire rope hoist)

    First class lifting units, maintenance free



    Security Protection Safety protection

    Three-in-one motor anti-fall protection for both large and small vehicles, preventing accidental drops.

    Gearmotor locker rope to protect drop

    Rainproof Cover: Outdoor cranes are equipped with a rainproof cover for the hoisting mechanism, electrical control cabinet, and drive system.

    Rain cover for outside hoist, driving units, electrical cubicle

    Audio-visual alarm device

    Warning indicator: flashing lights and warning sound

    Wireless collision avoidance device

    Wireless infra-detector for anti-collusion

    Crane Control Mode Control Mode

      Ground Control Pendant

    Easy to operate, no need for a professional driver.

    Easy control, no additional driver necessary

    Dual-position button

    Two-step push button, with emergency stop

    Follow‑on or independent slide, non‑follow‑on suspension

    Independent festoon station or fixed suspened under hoist

    The protection rating is IP65

    Protection class IP65

    Lifespan 50 Ten thousand times Life time 500,000



    Remote control Remote Control

    Easy to operate, requiring no specialized operator; the user enjoys great freedom of movement on the ground.

    Easy control, no additional driver, remote access

    Tens of thousands of frequency channels, with no mutual interference.

    Flexible frequency selection, total reliable

    Dual-position button or rocker-style joystick

    Two steps push button or joy stick station with emergency stop

    The protection rating is IP65 Protection class IP65

    Lifespan 50 Ten thousand times Life time 500,000
